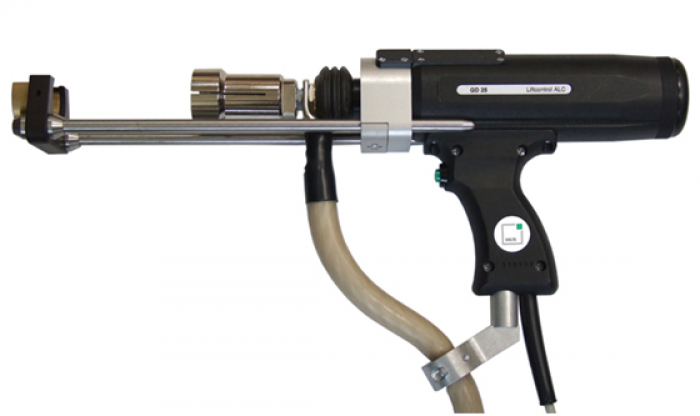

Bolte Stud Welding Gun GD 25

Bolte Stud Welding Gun GD 25

SKU: B-80-35-1255

adjustable lift (raster 0,3 mm) with very large adjustment range (0-6 mm)

continuously adjustable hydraulic piston damper to regulate the immersion speed of the stud into the welding pool

very high-grade outside welding cable (cable cross section: 120 mm²), enables extremely fast welding sequences and guarantees a long life time of the gun

automatic length compensation system for different stud lengths and surface conditions

optional: integrated travel measuring system
- enables a quality monitoring by measuring and recording of stud protrusion before the weld as well as stud travel (lift, immersion depth, immersion speed and short-circuit time) during the weld
- enables a comfortable, exact and fast adjusting of the stud welding gun

highest operational repeatability, high welding quality, high reliability

simple handling

quick and simple retooling

extremely quick welding sequences through newly developed solenoid

all stud types weldable (special chuck might be required)

piston with linear ball track

high service life through high-grade mechanical components

robust housing made from impact resistant, full-insulating plastics

120 mm² welding cable plugs in order to prevent burnt contacts

precision guidance protected from welding spatters

electronically controlled automatic lift

ergonomic design

£0.00 INC. VAT
£0.00 EXC. VAT

In Stock

Description

The new drawn arc stud welding gun GD 25 is designed for welding shear connectors with large diameters (22 and 25 mm).
The ample-dimensioned adjustable lift (adjustment range: 0-6 mm) ensures in combination with the adjustable hydraulic piston damper optimum welding results in this diameter field. Of course, the new guns are suitable for welding through metal deck.
The gun also features a piston with linear ball track, an automatic length compensation system for different stud lengths and surface conditions as well as a robust, impact resistant housing for the hard work on the construction site.
The high-grade outside welding cable (cable cross section 120 mm²) accommodates the high welding currents that are necessary for large stud diameters.
Optionally, the new guns can be equipped with integrated travel measuring system. Using this the lift adjustment couldn`t be easier. Moreover, it enables a quality monitoring by measuring and recording of stud protrusion before the weld as well as stud travel (lift, immersion depth, immersion speed and short-circuit time) during the weld.

Technical Specification

Welding range	Ø 3-25 mm
Welding material	steel, stainless steel
Stud length	10-525 mm
Welding method (acc. to DIN EN ISO 14555)	stud welding with ceramic ferrule, stud welding with shielding gas
Lift	0-6 mm, adjustable (raster: 0,3 mm)
Welding cable	2 m, 120 mm², outside
Control cable plug	12-pin
Dimensions (WxHxL)	68x180x295 mm
