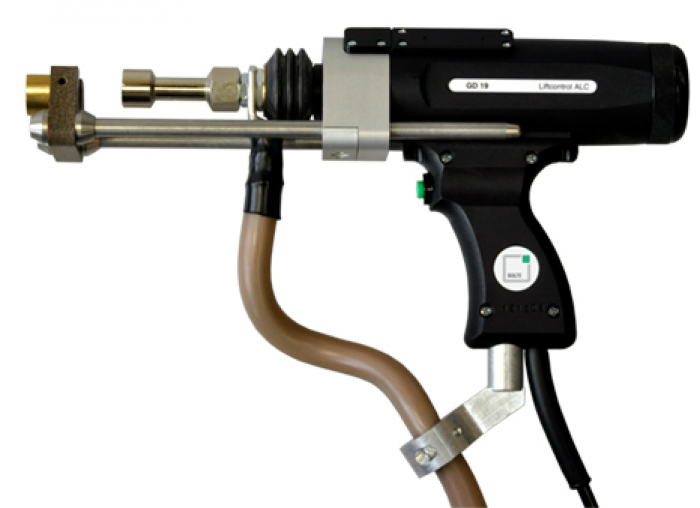

Bolte Stud Welding Gun GD 19

SKU: B-80-35-1253

continuously adjustable hydraulic piston damper to regulate the immersion speed of the stud into the welding pool

very high-grade outside welding cable (cable cross section: 70 mm²), enables extremely fast welding sequences and guarantees a long life time of the gun

automatic length compensation system for different stud lengths and surface conditions

optional: integrated travel measuring system
- enables a quality monitoring by measuring and recording of stud protrusion before the weld as well as stud travel (lift, immersion depth, immersion speed and short-circuit time) during the weld
- enables a comfortable, exact and fast adjusting of the stud welding gun

Price on Application

Description

The drawn arc stud welding gun GD 19 is designed for welding shear connectors up to a diameter of 19 mm. The gun is equipped with a very high-grade outside welding cable. The generous dimensioning (cable cross section: 70 mm²) enables extremely fast welding sequences and guarantees a long life time of the gun.
With the adjustable lift (adjustment range: 0-4 mm) and the newly developed adjustable hydraulic piston damper the new GD 19 can be perfectly set up for each welding task. The new gun also features a piston with linear ball track, an automatic length compensation system for different stud lengths and surface conditions as well as a robust, impact resistant housing for the hard work on the construction site.
Highlight of the new gun is the integrated travel measuring system (optional). Using this the lift adjustment couldn`t be easier. Moreover, it enables a quality monitoring by measuring and recording of stud protrusion before the weld as well as stud travel (lift, immersion depth, immersion speed and short-circuit time) during the weld.

Technical Specification

Welding range	Ø 3-19 mm
Welding material	steel, stainless steel
Stud length	10-525 mm
Welding method (acc. to DIN EN ISO 14555)	stud welding with ceramic ferrule, stud welding with shielding gas
Lift	0-4 mm, adjustable (raster: 0,3 mm)
Welding cable	2 m, 70 mm², outside
Control cable plug	12-pin
Dimensions (WxHxL)	68x180x260 mm
