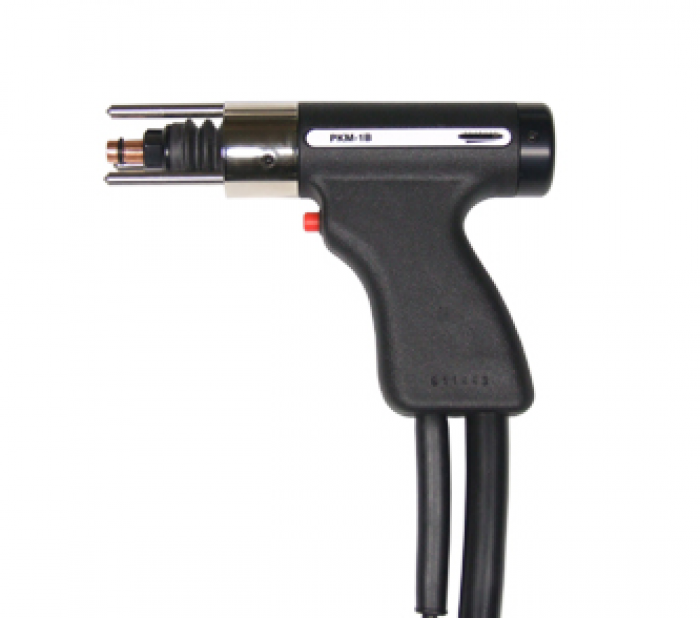

Bolte Stud Welding Gun PKM-1B

Bolte Stud Welding Gun PKM-1B

SKU: B-90-10-2115

very well suited for welding on problematic surfaces (e.g. zinc, tinder)

spring pressure adjustable

indication of adjusted spring pressure in sight window

highest operational repeatability, high welding quality, high reliability

highest stud positioning accuracy through precise slide-bearing guide of gun piston

simple handling

quick and simple retooling

all stud types weldable (special chuck might be required)

robust housing made from impact resistant, full-insulating plastics

50 mm² welding cable plugs in order to prevent burnt contacts

recision guidance protected from welding spatters

ergonomic design

low weight

optional: precision linear ball track of gun piston

Price on Application

Description

The compact stud welding gun PKM-1B is designed for capacitor discharge stud welding (contact method). It guarantees optimum welding results and repeatability and is very easy to use. The PKM-1B stands out through its robust construction and high reliability. Its ergonomic design and low weight assure tireless working.

Technical Specification

Welding range	Ø 2-10 mm
Welding material	steel, stainless steel
Stud length	6-40 mm (with accessories: any)
Welding method (acc. to DIN EN ISO 14555)	capacitor discharge (contact method)
Welding cable	6,5 m, 25 mm²
Control cable plug	7-pin
Dimensions (WxHxL)	40x130x183 mm

Documents

Brochure
