Powermax 30 XP boxed set
Powermax 30 XP boxed set cutting close up shot Action shot Hypertherm powermax30 xp

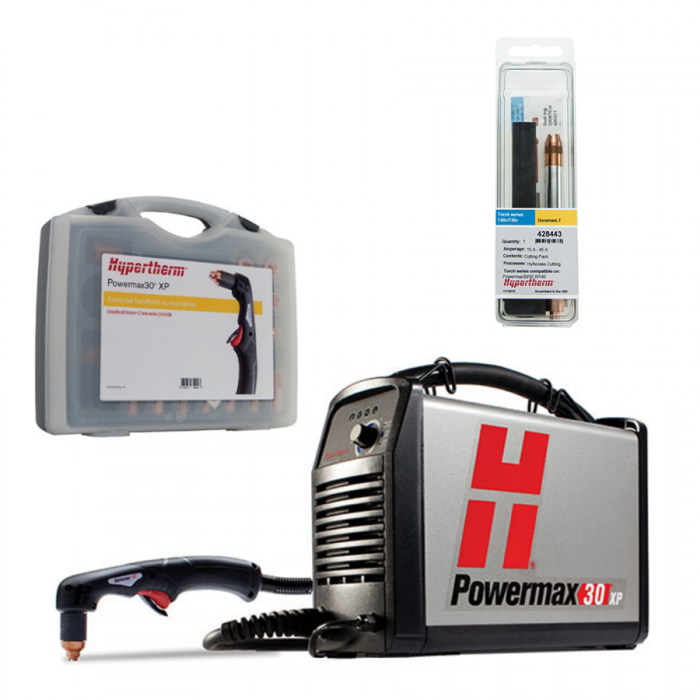

Hypertherm Powermax 30 XP Boxed Set
SKU: 088083

The Powermax30 XP is a highly portable, 30 A, handheld plasma cutting system appropriate for a wide range of applications. It uses air or nitrogen to cut electrically conductive metals, such as mild steel, stainless steel, or aluminium. This system is designed to get you cutting quickly and easily.


Set Includes -
Powermax 30xp Power source
Custom Carry Case
Shaded Glasses
Cutting Gloves
Adapter Plugs for 120V or 240V
4,5 m (15') Duramax LT torch

£1,678.80 INC. VAT
£1,399.00 EXC. VAT
In Stock
  • Description

    The new Powermax30 XP delivers high performance in a small, portable package. With its two-in-one design, the system provides high-power capability for thick metal cutting, plus FineCut® consumables for detailed, thin metal cutting. Combined with a custom carry case, shaded glasses, cutting gloves and adapter plugs for 120 V or 240 V circuits, this system is designed to get you cutting quickly and easily.

  • Technical Specification
    Input voltages 120-240 V, 1-PH, 50/60 Hz
    Input current @ 3.8 kW 120-240 V, 1-PH, 25-18.8 A
    Output current 15-30 A
    Rated output voltage 125 VDC
    Duty cycle @ 40°C (104°F) 35%, 240 V
    20%, 120 V
    Open circuit voltage (OCV) 256 VDC
    Dimensions with handles 356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H
    Weight w/ 4,5 m (15') torch CE, CCC: 9.5 kg (21 lbs)
    Gas Supply Clean, dry, oil-free air or nitrogen
    Recommended gas inlet flow rate / pressure 113.3 l/min (4 scfm) at 5.5 bar (80 psi)
    Input power cable length 3 m (10')
    Power supply type Inverter - IGBT
    Engine drive requirement 5.5 kW for full 30 A output
    Certifications CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
    Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.
  • Documents
    PDF 2 Brochure
