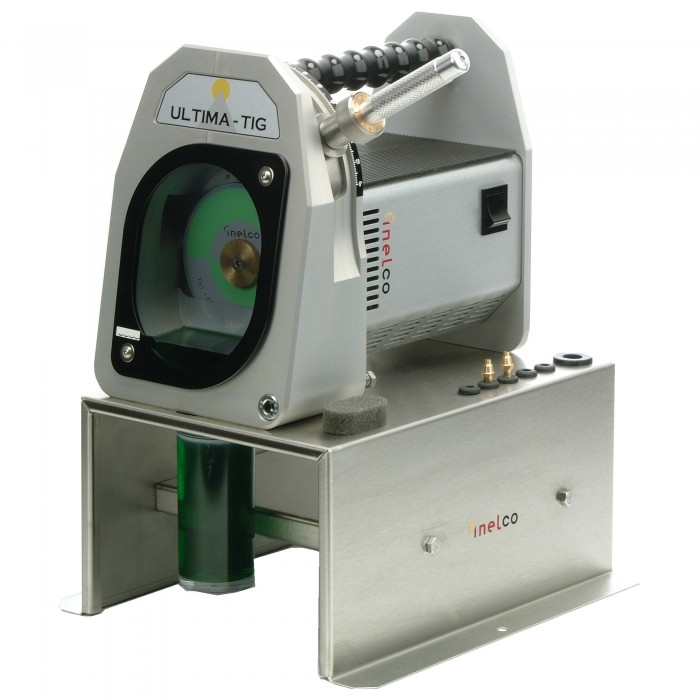

Ultima-Tig Tungsten Grinder
Ultima-Tig Tungsten Grinder Ultima-Tig Tungsten Grinder Ultima-Tig Tungsten Grinder Ultima-Tig Tungsten Grinder
Ultima-Tig Tungsten Grinder
SKU: 888970

Key Features

  • The Ultimate in Tungsten Grinding Technology

  • Long lasting Diamond Super Abrasive grinding disc

  • Eco friendly collection of toxic dust particles

  • Fully enclosed Grinding chamber means there is no dust exposure to the operator thus eliminating the need for extraction

  • Perfect grinding for accurate angles

  • A combined electrode length gauge and locking device,ensuring minimal removal of electrode during grinding(0.3mm)

  • Polished angle surface for improved arc striking and arc stability

  • Longer electrode life between regrinds

  • Ergonomic design and easy to use

  • Capable of grinding electrodes up to 4mm in diameter for standard machine or up to 8mm for the Ultima-Tig 4.8 machine

  • Can grind electrodes as short as 8mm in length (special electrode clamp required)

  • Available in 110 Volt or 230 Volt

  • Powerful 380W motor producing 8500 RPM

£1,380.00 INC. VAT
£1,150.00 EXC. VAT

* Required Fields

In Stock
  • Description

    The patented Ultima-Tig wet tungsten grinder demonstrates an eco-friendly way to grind perfect accurate and repeatable angles on tungsten electrodes.

    The Ultima-Tig is constructed with a unique, fully enclosed grinding chamber and dust disposal container that automatically collects all toxic dust particles. This results in a healthy dust free environment for the operator, eliminating the need for separate exhaust systems. The sealed container can be disposed of into landfill or returned to your local distributor or BH Tungsten Grinders (in accordance with HSE OC 564/6 REV)

    Cold wet grinding combined with the diamond wheels high grinding speed ensures that the tungsten electrode always has a polished and even surface.

    With the Ultima-Tig you will achieve the exact angle that you require. A special locking device positions the electrode precisely, and the grinding is carried out in the correct longitudinal direction along the electrode. A precise angle is not only important to the quality of the welding seams but it increases the number of re-ignitions between grinding, thus prolonging the electrode life.

    The Ultima-Tig is easy to use. Place the electrode in the electrode holder. Adjust the pointer to the required grinding angle and insert the tungsten electrode into the combined stick-out and locking device. After the grinding has taken place you can, if needed, flatten the tip by placing the electrode clamp in the 90 degree position.

    Due to the use of an electrode holder, the Ultima-Tig is able to grind electrodes as short as 15mm with a standard electrode clamp, and 8mm with a special electrode clamp. The use of the electrode holder also ensures a precise and concentric tip every time.

    The Ultima-Tig is available in 230V and 110V and comes complete with a 2 metre cable, 250ml bottle of grinding liquid, diamond super abrasive wheel, electrode clamps (1.6mm-3.2mm), electrode holder, disposable container complete with liquid and a stainless steel stand.

    The Ultima-Tig is CE marked and meets all applicable  EU directives.

  • Documents
    PDF 3 Technical Specification
