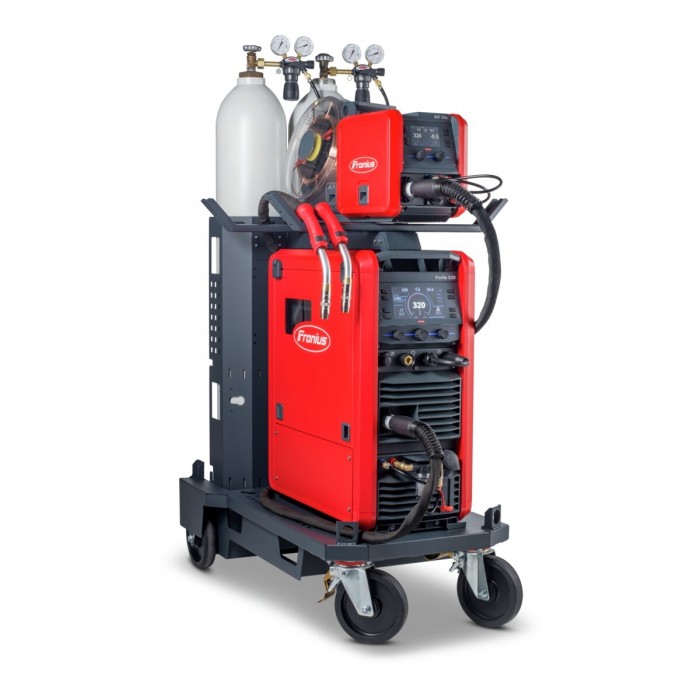

FRONIUS FORTIS 400A XT DUO - WATERCOOLED

SKU: FORTIS400D

The Fronius Fortis 400A XT Duo, has up to 240 optimized characteristics that have been specially developed for the requirements of steel construction. In addition to steel, this MIG/MAG welding machine also masters materials such as aluminium and stainless steel effortlessly, especially in combination with the pulsed arc.The Fronius Fortis is has countless possibilities to make welding a breeze in any environment.

The Fortis Duo combines a compact welding machine from 320 to 500 A with an additional, external wirefeeder. This means that the welder has two different materials or wire thicknesses ready to hand on a single device, saving time-consuming process changes for frequently changing welding tasks.

The Fortis 400A XT, is an extremely energy-efficient all-rounder for three-phase mains voltages from 200 to 600 V and single-phase operation up to max. As a result these machines are perfect for worldwide use, save energy thanks to their higher power factor, and offer an additional higher output characteristic curve for even greater welding performance.

- Duo variant availability: compact welding machines can be combined with an additional wirefeeder.

- Comes Water Cooled as standard.

- Same user interface for all Fortis variants.

- Energy savings of up to 16%, making it not only extremely powerful, but resource-efficient too.

For more information on this machine please call our team directly on 01263 834865.

Price on Application

Description
The Fortis 400A XT, is an extremely energy-efficient all-rounder for three-phase mains voltages from 200 to 600 V and single-phase operation up to max. 320 A including CEL mode. As a result these machines are perfect for worldwide use, save energy thanks to their higher power factor, and offer an additional higher output characteristic curve for even greater welding performance.

The Fronius Fortis 400A XT Duo, has up to 240 optimized characteristics that have been specially developed for the requirements of steel construction. In addition to steel, this MIG/MAG welding machine also masters materials such as aluminium and stainless steel effortlessly, especially in combination with the pulsed arc.

The welding parameter wizard supports the welding specialist by recommending the ideal parameter settings for upcoming welding jobs. Our clear, digital user interface allows you to keep a constant eye on the most important welding parameters. Fast process changes, more than 30 system languages to choose from, and customizable parameter settings are just a few of the highlights that make these devices extremely easy and intuitive to use.

Your Benefits:
- Reliable and Powerful
- Intuitive, modern, digital User Interface
- Multiprocess
- Wifi, Bluetooth and NFC Compatible
- WeldCube Air, WeldCube Premium and WeldCube Navigatior

Technical Specification

Weight	41.1kg - 43.5kg
Dimensions l x w x h	681 x 367 x 783 mm
Mains Frequency	50 / 60 Hz
Mains Voltage	3 x 200-600 V
Mains Voltage Tolerance	-10/+6%
40% Duty Cycle [10min / 40°C]	400 A
60% Duty Cycle [10min / 40°C]	360 A
100% Duty Cycle [10min / 40°C]	320 A
Open Circuit Voltage	Max.107 V
Wire Speed	1 - 25 m/min
Wire Feeder	4 roller drive
Wire Diameter	0.8 - 1.6mm
Protection Class	IP23

Documents

Brochure Technical Specification
