FRONIUS ARTIS DC/W/XT 300 - MigAnglia Welding Equipment

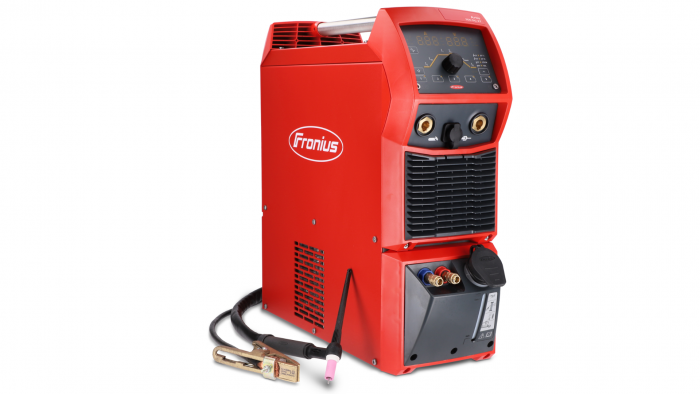

FRONIUS ARTIS DC/W/XT 300

SKU: ARTIS300/W/XTPKG1

POWERFUL & PRECISE:

With up to 300 amperes, the Artis 300 delivers stable welding power and ensures clean, precise TIG welds. Extensive options and simple operation makes this a dependable companion for everyday work.

ARTIS 300 XT - Cost Effective and Powerful:

The Artis XT is designed for mains voltages from 200 - 600V and can therefore be used worldwide. Depending on the power category and the mains fuse, up to 300 A is possible in single - phase operations.

Efficient TIG Welding:

40% duty cycle at 300A

10% mains voltage tolerance at maximum output power

96V-265V mains voltage supply

The electrode welding functions:

Electrode pulse welding

CEL electrodes

HotStart function

Anti-stick

Arc-force dynamic

Call the number below to chat with our expert team of engineers and find out more.

01263 834865

Price on Application

Description
POWERFUL & PRECISE:

With up to 300 amperes, the Artis 300 delivers stable welding power and ensures clean, precise TIG welds. Extensive options and simple operation makes this a dependable companion for everyday work.

The Fronius Artis 300 is a robust, high‑performance DC TIG welding system designed for professionals who demand precision and reliability. The Artis 300 delivers powerful output suitable for demanding industrial applications. Its compact, lightweight design makes it ideal for on‑site work, while advanced control features ensure flawless seams.

Efficient TIG Welding:
- 40% duty cycle at 300A
- 10% mains voltage tolerance at maximum output power
- 96V-265V mains voltage supply
The TIG welding functions:
- TIG pulse function up to 990 Hz
- TAC function (time savings of up to 50% when tacking materials)
- Spot and stitch welding (for recurring welded joints)
- Trigger modes off
- Gas pre-flow time/gas post-flow (automatic and manual)
- PTD - Pulse/TAC display
- Touch HF (for high frequency ignition in difficult to access areas)
- TIG welding torch with different operating options
The electrode welding functions:
- Electrode pulse welding
- CEL electrodes
- HotStart function
- Anti-stick
- Arc-force dynamic
Additionals:
- Water - Cooled version
- Worldwide usage
- Full Generator Compatibility
- Optimised welding performance due to higher output characteristics
- CEL - Compatibility

Technical Specification

Mains Voltage	3 x 200 - 575 V/1 X 230 V
Mains Voltage Tolerance	-10/+10%
Mains Frequency	50/60 Hz
Mains Fuse Protection (slow-blow)	30 A
Maximum Primary Power (100% D.C)	5.6 kVA
TIG Welding Current	10 min/40°C (104°F) U1 = 3 x 400 V
40% D.C	300 A
60% D.C	260 A
100% D.C	230 A
Electrode Welding Current	10 min 40°C (104°F) U1 = 3 x 400 V
40% D.C	250 A
60% D.C	220 A
100% D.C	180 A
TIG Open Circuit Voltage (Pulse)	39 V
Electrode Open Circuit Voltage ( Pulse)	101V
TIG Output Voltage Range	10.3 - 22.0 V
Protection Class	20.4 - 30.0 V
Dimensions L x W x H	IP 23

Documents

Brochure
