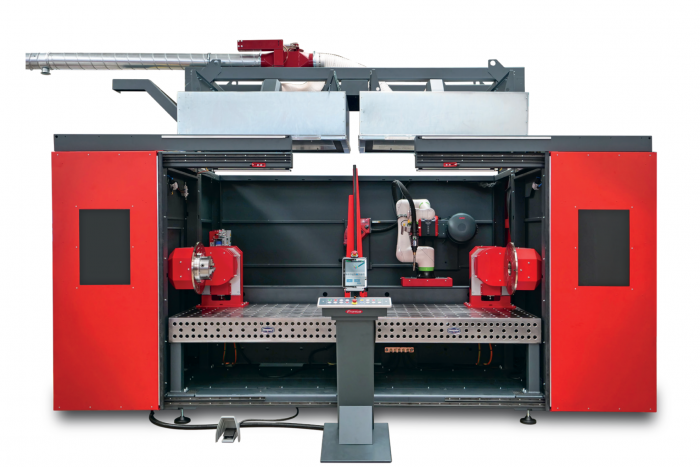

Fronius Cobot Welding Cell - Double

SKU: FROCWC-D

The Fronius cobot welding cell is centred around cost effective welding–from small batch runs through to large series production. The welding cell provides maximum flexibility: one-station operation for large workpieces, or two-station operation to set up and weld in parallel. Programming is made easy using drag and drop, with no prior knowledge of robot programming required.

Easy and intuitive programming and controls:

The innovative teach pendant tablet makes it quick and easy to get started with programming. This is facilitated through the use of drag and drop. The control panel allows for welding stations to be controlled individually.

Features:

– Maximum productivity thanks to two-station operation.

– Both stations can be programmed and operated independently.

– Removable partition provides for expanded working area.

– Robot track for individual robot positioning, or as an additional welding axis.

– Can be upgraded with turn/tilt positioner.

– Rapid cycle times when switching from cobot to robot mode (up to 8x speed of travel).

CE-tested safety:

– Enclosure with automatic safety doors as glare protection and to protect against high UV radiation levels.

– Integrated smoke extraction hood: rail-guided for crane loading.

To purchase or find out more about this product contact the team on via the number 01263 834865.

Price on Application

Description

The Fronius cobot welding cell is centred around cost effective welding–from small batch runs through to large series production. The welding cell provides maximum flexibility: one-station operation for large workpieces, or two-station operation to set up and weld in parallel. Programming is made easy using drag and drop, with no prior knowledge of robot programming required.

Easy and intuitive programming and controls:

The innovative teach pendant tablet makes it quick and easy to get started with programming. This is facilitated through the use of drag and drop. The control panel allows for welding stations to be controlled individually.

Features:

– Maximum productivity thanks to two-station operation.

– Both stations can be programmed and operated independently.

– Removable partition provides for expanded working area.

– Robot track for individual robot positioning, or as an additional welding axis.

– Can be upgraded with turn/tilt positioner.

– Rapid cycle times when switching from cobot to robot mode (up to 8x speed of travel).

CE-tested safety:

– Enclosure with automatic safety doors as glare protection and to protect against high UV radiation levels.

– Integrated smoke extraction hood: rail-guided for crane loading.

Technical Specification

Welding Process	MIG / MAG
Mains Voltage	400 V/N/PE 50 - 60 Hz
Connected load	14.2 kVA
Compressed air	6 - 7 bar
Dimensions l x w x h	4,783 x 2,245 x 3,259.5 mm
Height	824 mm
Max. component size (two stations)	2 x 1,500 x 1,000 x 600 mm
Max. component size (one station)	3,000 x 1,500 x 600 mm
Weight	4,000 kg
Robot repetition accuracy	+/- 0.04 mm
