Nederman 160E

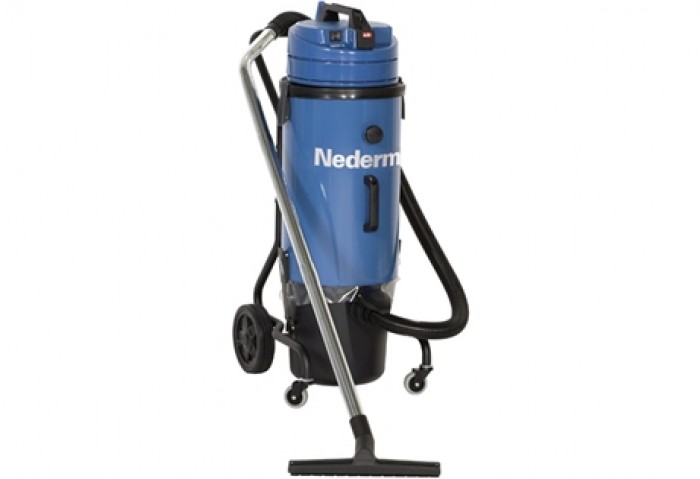

Nederman 160E Portable High Vacuum and Fume Extractor Unit - 230V
SKU: 40055020
The Nederman high vacuum dust extraction unit 160E is ideal when you have quality standards for effective cleaning and dust removal.
£1,740.00 INC. VAT
£1,450.00 EXC. VAT
In Stock
  • Description

    To inhale fresh air and to have a clean workplace, isn’t that what we all want? After all, a working environment without dust or other contaminants contributes to wellbeing and better health for the employees and a longer working life for machines. This is a precondition for increased productivity and improved quality. 160E makes work easier whether you are cleaning, grinding or welding.
    Fine dust cannot be eliminated by using brushes or air guns – on the contrary, these redistribute dust around the work area. If the dust is extracted immediately at the source, this problem can be eliminated and the environment for both people and machines will be greatly improved. The Nederman high vacuum dust extraction unit 160E is ideal when you have quality standards for effective cleaning and dust removal. You’ll also appreciate its lightweight, ease-of-handling and low operating and maintenance costs. The bag filters are easy to clean and have a lifetime of 4000–6000 hours. With a microfilter (option) the unit will filtrate also the finest particles. The auto start/stop for electrical tools is very useful in industrial applications.

    • Easy to operate
    • Safe to use
    • Long filter lifetime
    • Low running costs

  • Technical Specification
    Noise level (dB(A)) 75
    Protection class IP 24
    Filter efficiency (%) 99
    Installation [Indoor]
    Material Casing in sheet metal (steel)
    Filter cleaning method [Manual], Reverse air pulse
    Applications [dust], [granulate], [fumes]
    Working pressure (kPa) 22
    Dustbin volume (l) 14
    Max Airflow (m3/h) 160
    Hose Diameter (mm) 38
    Hose Length (m) 5
    Filter Area (m2) 0.6
    Frequency (Hz) 50
    No of phases 1
    Filter type [bag]
    Number of filter elements 1
    Noise level ((dB)A) 75
    Max vacuum (kPa) 22
    Weight (kg) 19,5
    Power (kW)1
  • Documents
    PDF 3 Technical Specification
