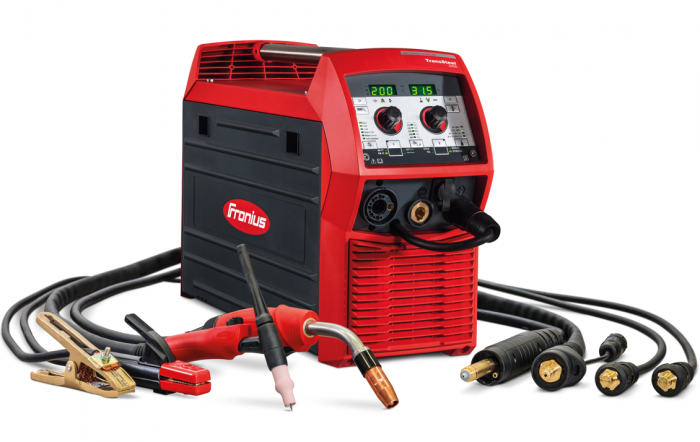

Fronius TransSteel 2200C MP/TC Ready To Weld Package

Fronius TransSteel 2200C MP/TC Ready To Weld Package

SKU: FROMA4.075.220.890

Fronius Tst 2200C MP/TC Ready To Weld Package

22A Welding Machine

Grounding Cable 25mm²

3m Manual Welding Torch 250

Carrying Case

A Gas-cooled 3.5m Original Equipment Kit Wear Parts 0.8-1.0mm For Steel

Electrode Cable 25MM²

4M Torch Hose Pack

180 A Gas Cooled 4m With Updown Operation

£2,590.80 INC. VAT
£2,159.00 EXC. VAT

In Stock

Description

The TransSteel 2200 is a compact, 3-in-1 solution. It is the first single-phase inverter power source from Fronius that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a single device. The TransSteel 2200 is characterised by the intelligent design of the device, ease of use, robustness and a high level of reliability. Weighing only 15.5 kg, it is also one of the lightest devices on the market

One device - for all manual welding applications
Combining MIG/MAG, TIG, and electrode welding in one device means you no longer have to purchase any other power sources. There is absolutely no difference in the welding performance of the respective process compared with a dedicated device.

118 characteristics*

/ Steel, CrNi, AlMg, AlSi, Metal Cored, Rutil FCW, Basic FCW, self-shielded wires

/ 0.8 – 1.2 mm wire diameter

/ Eight different gas mixtures

Ready to weld in three steps
The intuitive operating concept enables welders to start work straight away – no prior knowledge of the device is required. All the essential welding parameters can be viewed and adjusted on the front panel. The only parameters that have to be selected before welding begins are the gas, wire diameter and material thickness.

Technical Specification

Mains voltage	230V
Mains voltage tolerance	-20% / +15%
Mains frequency	50-60Hz
Welding current min.	10 A
Welding current max.	230 A
Welding current / Duty cycle [10min/40°C]	210A / 30% MAG, 180A / 35% MMA, 230A / 35% TIG
Welding current / Duty cycle [10min/40°C]	170A / 60% MAG, 150A / 60% MMA, 200A / 60% TIG
Welding current / Duty cycle [10min/40°C]	150A / 100% MAG, 130A / 100% MMA, 170A / 100% TIG
Operating voltage min.	14,5 V
Open-circuit voltage	90 V
Degree of protection	IP23
Length	560 mm
Width	215 mm
Height	370 mm
Weight	15 kg
Interference emission class	A
Power Factor (pf)	0,99
