BRAND NEW MODEL

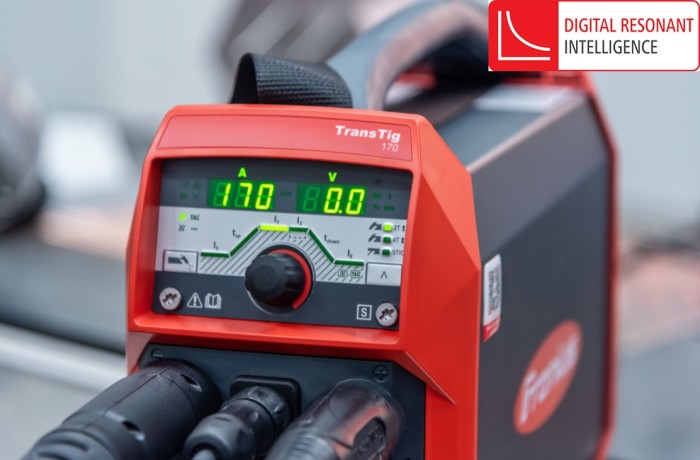

TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set
TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set
TransTig 170 MV Multi-Voltage DC TIG ARC Welder Boxed Set
SKU: FROMA4.075.216.858

This Professional Welding Tool is one of the most recent additions to this excellent range of products from Fronius. Single-phase, multi-voltage DC TIG & MMA arc welding machine complete with a robust site/transport box.


Boxed Set Contains:
TransTig 170 EF, THP 180 G SH ML/F/UD/Le/4m,
TTB 160A G ML /70°/L65,
GroundCable 16mm² 3m 200A 60% Plug 35mm² earth clamp,
Tool Case 85,
TIG gloves Highend (size 10),
tungsten electrode WC20/ø1,x175

£2,280.00 INC. VAT
£1,900.00 EXC. VAT
In Stock
  • Description
    When developing the TransTig 170/210, our focus was entirely on the benefit for our customers. What is needed is absolutely clear: a perfect, stable arc. The higher operating frequency of the inverter technology makes this stability possible - due to precise control. Other benefits of this optimized process technology are maximum efficiency in the duty cycle, the output power and the mains voltage supply. Last but not least, this increased efficiency also makes welding more enjoyable!
  • Technical Specification
    Mains voltage U1 1 x 120 V 1 x 230 V
    Mains voltage tolerance -20%/+15% -30%/+15%
    Grid frequency 50/60 Hz
    Mains fuse protection (slow-blow) 20 A 16 A
    Maximum primary power (100% D.C.) 1.75 kVA (100 A TIG) 2.7 kVA (140 A TIG)
    Cos phi 0.99
    TIG welding current 10 min/40 °C (104 °F), U1 = 230 V
    40% D.C. 140 A 170 A
    60% D.C. 120 A 155 A
    100% D.C 100 A 140 A
    Electrode welding current 10 min/40 °C (104 °F), U1 = 230 V
    40% D.C. 100 A 150 A
    60% D.C. 90 A 120 A
    100% D.C. 80 A 110 A
    TIG open circuit voltage (pulse) 35 V
    Electrode open circuit voltage (pulse) 97 V
    TIG output voltage range 10.4 – 16.8 V
    Electrode output voltage range 20.4 – 26.0 V
    Degree of protection IP 23
    Dimensions l × w × h 435 x 160 x 310 mm
    Weight 9.9 kg
    Mark of conformity CE/CSA
    Safety symbols S
  • Documents
    PDF 2 Brochure
